LTE Cat M1/NB1 Compact Integrated Vehicle Trackers
The GV50 Series (LTE) is a range of GNSS trackers designed for a wide variety of simple vehicle tracking applications, including vehicle finance, asset protection, stolen vehicle recovery and simple fleet management. Vehicle trackers within the series support LTE Cat M1/NB1 on multiple bands for operation in America, Europe, and Oceania with a fallback to GPRS. The GV50 Series offers basic digital I/Os that can be used for monitoring or controlling external peripherals.
Small-sized, Ultra-thin Device Allowing Covert Installation
Cost Effective Solution for Basic Tracking
Multiple I/O Interfaces for Monitoring and Control
Internal 3-axis Accelerometer for Motion Detection
Driving Behavior Monitoring and Incident Notification
http://www.queclink.com/GV50Series
GV50 Product Series
Model No. | Region | Network/Operating Band | Certificate |
| GV50MA | North America | LTE eMTC/NB-IoT LTE B2/B4/B5/B12/B13 | FCC/Verizon |
GV50ME | Europe | LTE eMTC/NB-IoT/EGPRS LTE B3/B8/B20 EGPRS 850/900/1800/1900 MHz |
|
| GV50MB | Oceania and Brazil | LTE eMTC/NB-IoT/EGPRS LTE B3/B28 EGPRS 850/900/1800/1900 MHz |

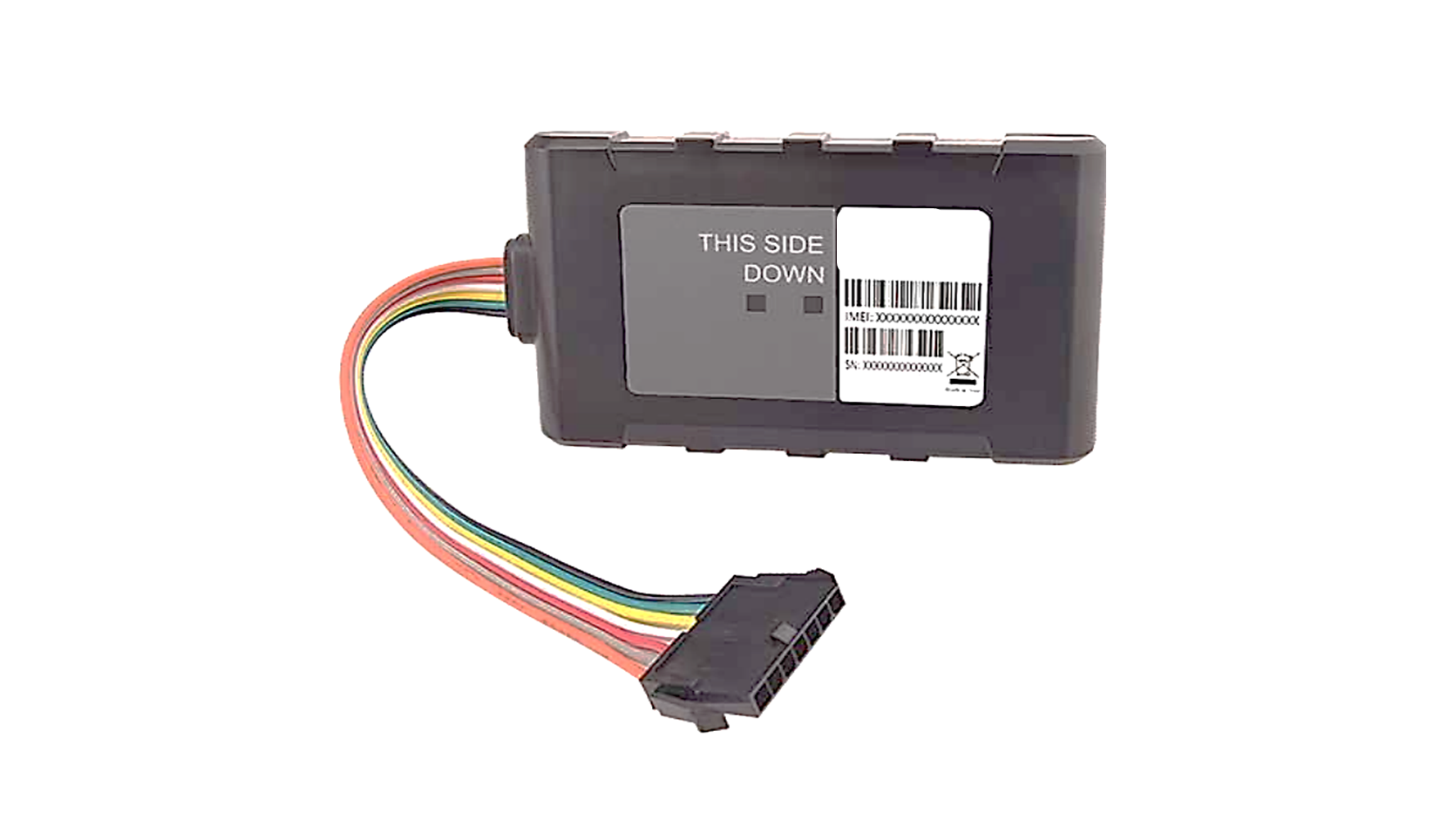

GV50 Series (LTE)
GSM Specifications (GV50ME, GV50MB)
Frequency
850/900/1800/1900 MHz
Data Transmission
GPRS multi-slot class 33 (33 by default)
EDGE multi-slot class 33 (33 by default)
LTE Specifications
MODEL
ITEM
GV50MA
GV50ME
GV50MB Operating Band
B2/B4/B5/B12/B13
B3/B8/B20
B3/B28 Data Transmission
eMTC (DL) 375 Kbps
eMTC (UL) 375 Kbps
NB1 (DL) 32 Kbps
NB1 (UL) 70 Kbps
GNSS Specifications
GNSS Type
u-blox All-in-One GNSS receiver
Sensitivity
Cold start: -145 dBm
Tracking: -161 dBm
Position Accuracy (CEP50)
Autonomous: < 2.5m
TTFF (Open Sky)
Cold start: 30s average
Hot start: 1s average
Interfaces
Digital Input
1 positive trigger input for ignition detection
Digital Output
1 digital output, open drain, 150 mA max drive current
Digital Input/Output
1 special I/O can be configured as a negative trigger digital input or an open drain output with 150 mA max drive current
Serial Port
1 TTL UART port for upgrading and debugging
Cellular Antenna
Internal only
GNSS Antenna Internal only LED Indicators
CEL, GNSS
General Specifications
Dimensions
87mm(L) x 55mm(W) x 12.5mm(H)
Weight
50g
Backup Battery
Li-Polymer 190 mAh
Operating Voltage
8V to 32V DC
Operating Temperature
-30℃~ +80℃
-40℃ ~ +85℃ for storage
Air Interface Protocol
Transmit Protocol
TCP, UDP, SMS
Scheduled Report
Report position and status based on preset time intervals, distance, mileage or a combination of these settings
Geo-Fences
Geo-fence alarm, support up to 20 circular and 20 polygon geo-fence regions
Power on Report
Report when the device is powered on
Tow Alarm
Alarm for tow event in ignition-off state
Driving Behavior Monitoring
Aggressive driving behavior detection, e.g. harsh braking and acceleration
Crash Detection
Accident data collection for reconstruction and analysis
Special Alarm
Special alarm based on digital inputs
Remote Control
OTA control of digital outputs
